S490 Auto Feed Digital Label Die Cutting Machine with Servo Motor

Shanghai Printyoung International Industry Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

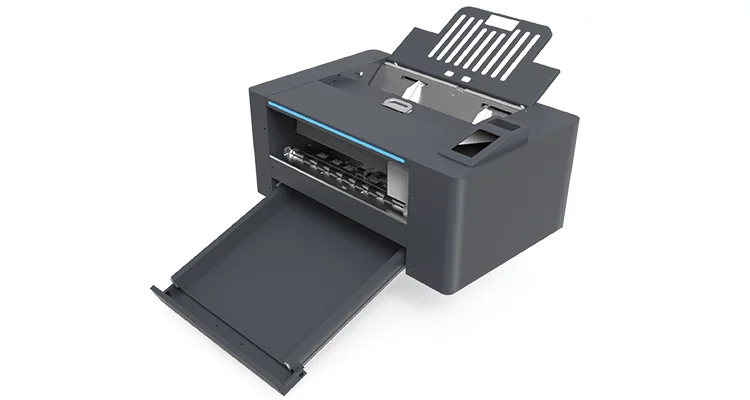

S490 Auto Feed Digital Label Die Cutting Machine with Servo Motor

  • 1
  • 2

Brand Name : PRINTYOUNG

Model Number : S490

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 1550 Set

Payment Terms : L/C, T/T

Supply Ability : 30 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Max. Feeding Paper : 150 pcs

Paper Width : 185 ~ 350 mm

Paper Length : 150 ~ 500 mm

Max. Cutting Speed : 1200 mm/s

Max. Cutting Force : 500 g

Feeding Way : Continue Feeding

Positioning Method : CCD

Display Language : English / Chinese

Interface : USB + U Disk + TCP (Wifi Optional)

Color : White / Black

N.W. / G.W. : 40kgs / 45kgs

Packing Size : 870 * 610 * 500 mm

Driver : Servo Motor

Mechanical Resolution : 0.0254 mm/step

Repeatability : 0.127 mm

Operating Environment : Temperature : +5℃ to +35℃ , Relative Temperature 30% ~ 70%

Operation system : Windows XP , Windows 7 , Windows 8 , Windows 10

Compatible Software : AID Cut Software / Coreldraw / AI

Contact Now

S490 Auto Feed Digital Label Die Cutting Machine with Servo Motor
S490 Digital Label Die Cutting Machine
S490 Auto Feed Digital Label Die Cutting Machine with Servo Motor
Technical Parameters
S490 Digital Label Die Cutting Machine
Max. Feeding Paper
150 pcs
Paper Width
185 ~ 350 mm
Paper Length
150 ~ 500 mm
Max. Cutting Speed
1200 mm/s
Max. Cutting Force
500 g
Feeding Way
Continue Feeding
Positioning Method
CCD
Display Language
English / Chinese
Interface
USB + U Disk + TCP (Wifi Optional)
Color
White / Black
N.W. / G.W.
40kgs / 45kgs
Packing Size
870 * 610 * 500 mm
Driver
Servo Motor
Mechanical Resolution
0.0254 mm/step
Repeatability
0.127 mm
Operating Environment
Temperature : +5℃ to +35℃ , Relative Temperature 30% ~ 70%
Operatin System
Windows XP , Windows 7 , Windows 8 , Windows 10
Compatible Software
AID cut software / Coreldraw / AI
S490 Auto Feed Digital Label Die Cutting Machine with Servo Motor
S490 Auto Feed Digital Label Die Cutting Machine with Servo Motor
S490 Auto Feed Digital Label Die Cutting Machine with Servo Motor
S490 Auto Feed Digital Label Die Cutting Machine with Servo Motor
S490 Auto Feed Digital Label Die Cutting Machine with Servo Motor
S490 Auto Feed Digital Label Die Cutting Machine with Servo Motor
S490 Auto Feed Digital Label Die Cutting Machine with Servo Motor
S490 Auto Feed Digital Label Die Cutting Machine with Servo Motor
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
